YZ E series neutral expansion fiber optic connector

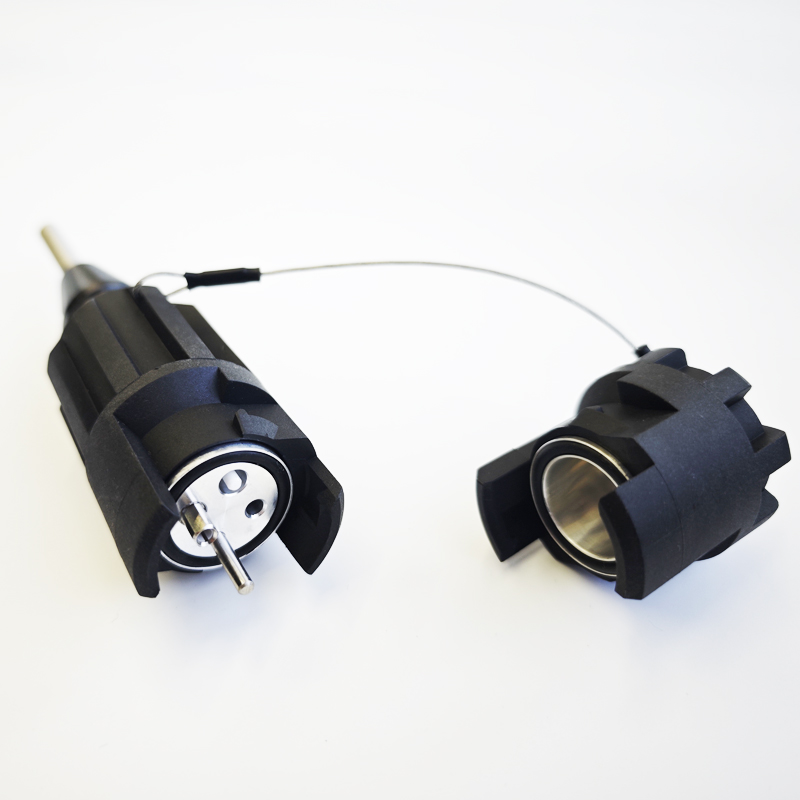

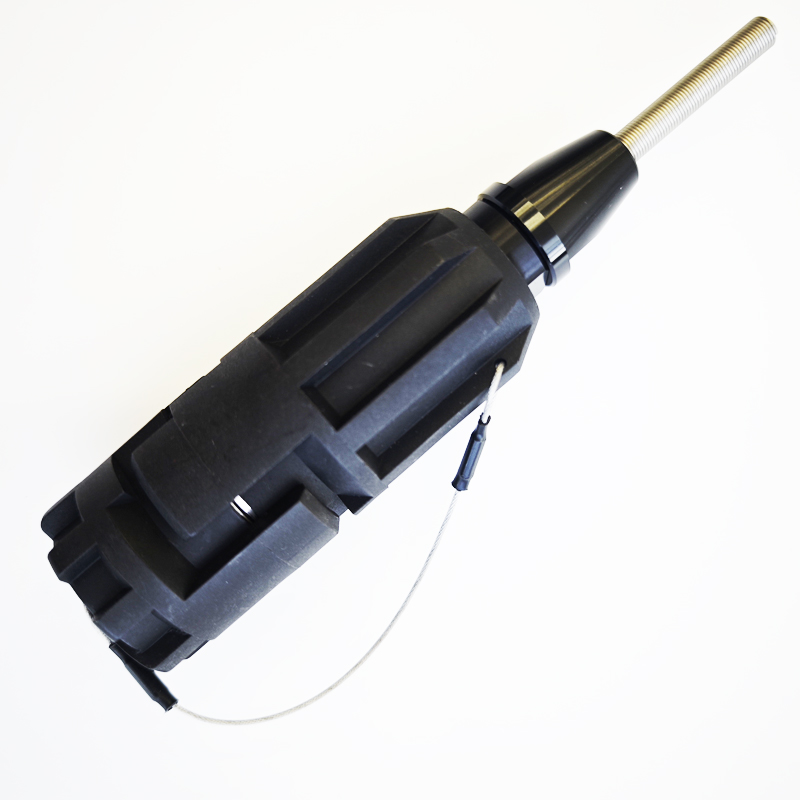

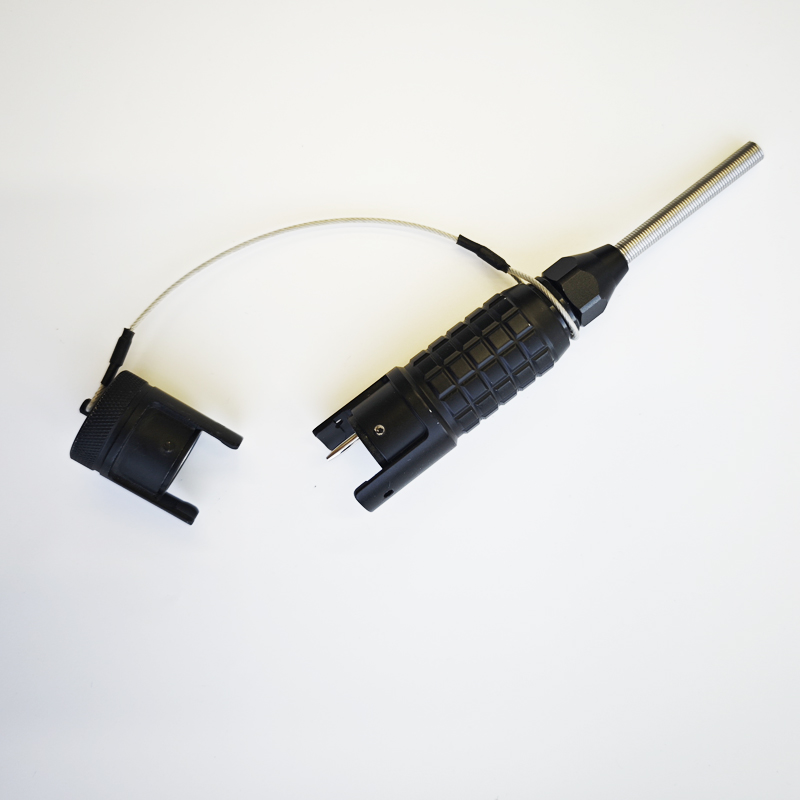

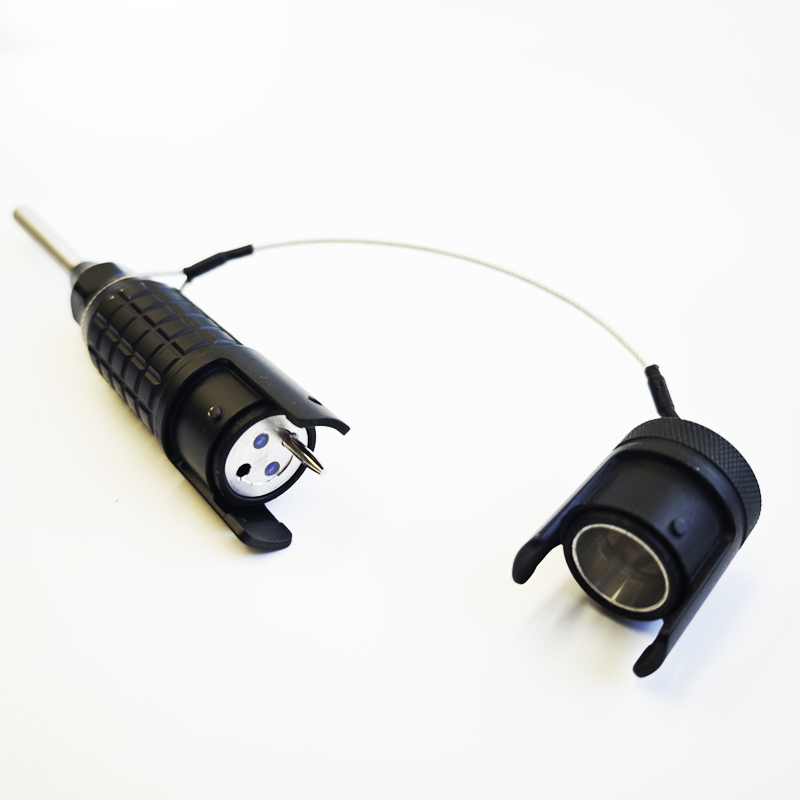

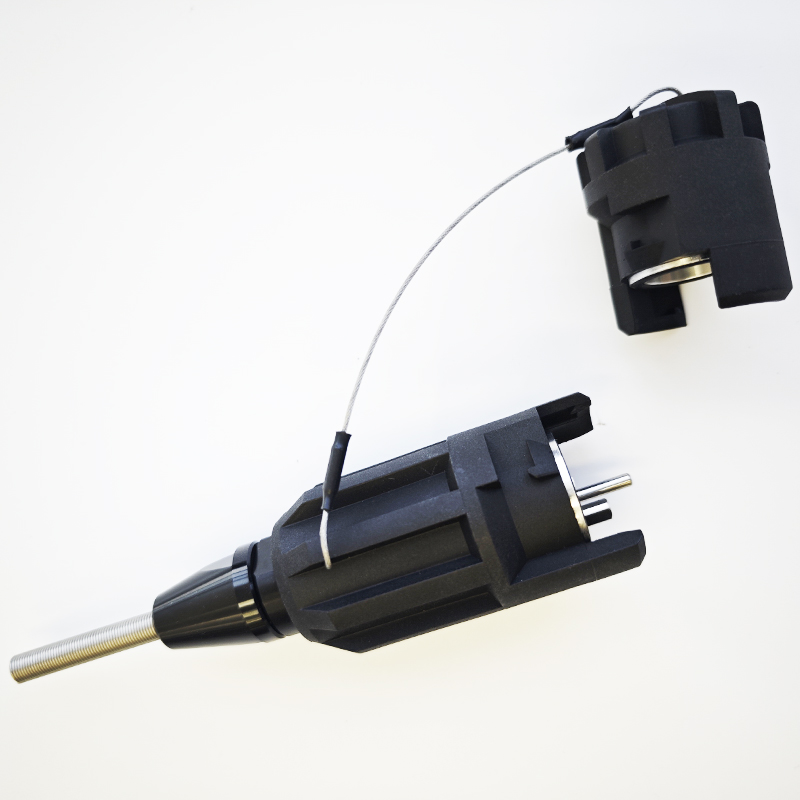

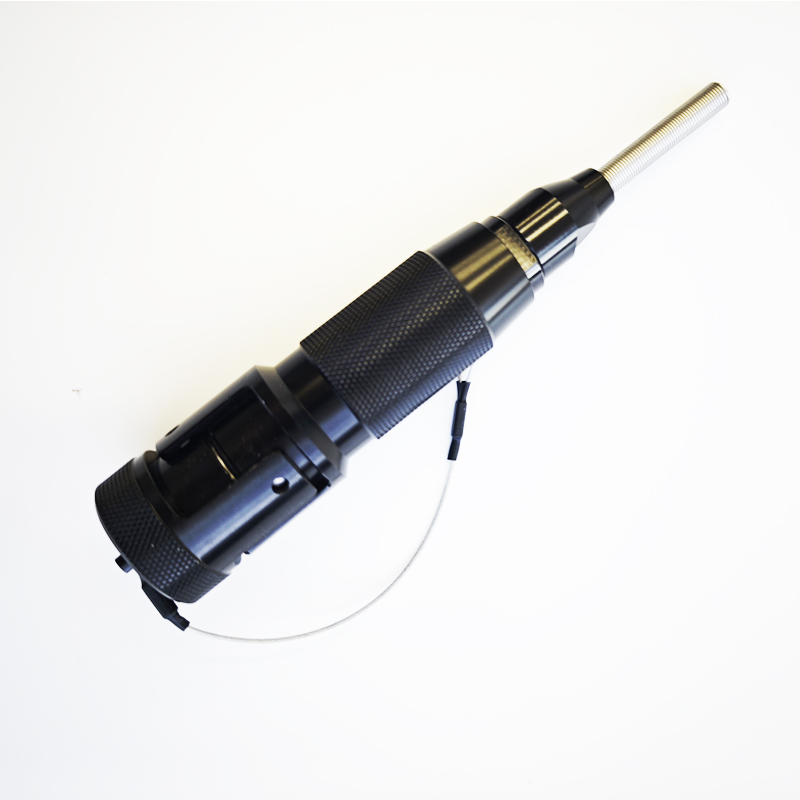

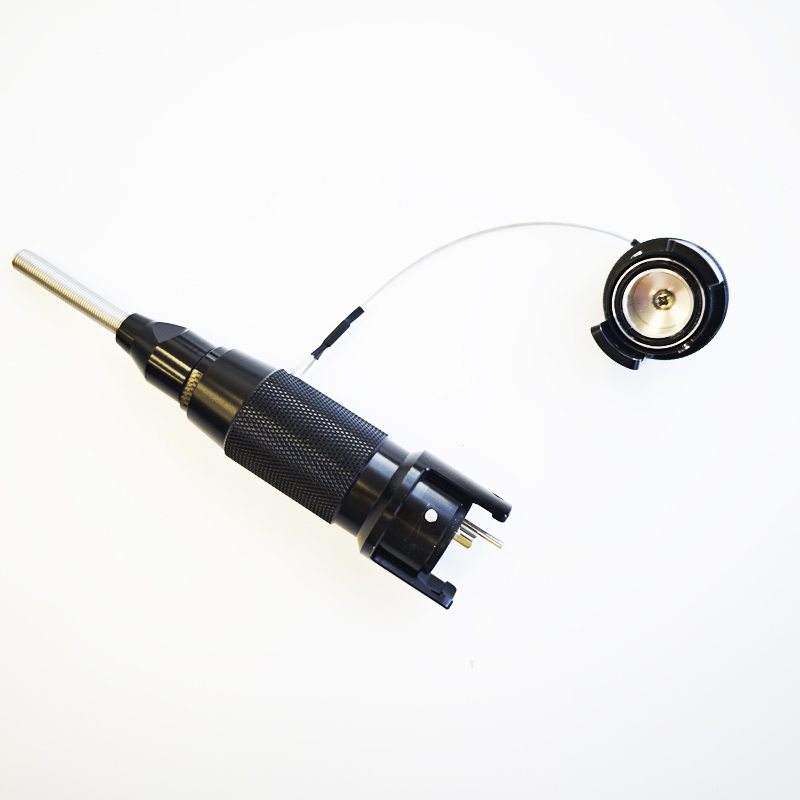

YZ E series neutral expansion fiber optic connector YZE series field neutral fiber optic connector, also known as neutral expansion fiber optic connector or TBE783 field expansion fiber optic connector, is specially designed for military field optical cables. This product has three nodes to choose from: 1 core, 2 core, and 4 core. The 2-core contact is currently the most widely used

One of them. Low connection loss, high reliability, sturdy, waterproof, dustproof, and resistant to harsh environments. It can be used for various field military fiber optic communication networks, military computer systems, airborne or shipborne equipment, emergency repair of optical cable systems, etc

Product Features

◼   Adopting a neutral bayonet lock, it can achieve quick connection and separation

◼   Neutral structure design, can be interconnected freely without distinguishing between male and female, plug and socket

◼   The contact piece adopts a collimated cylindrical lens, noncontact connection, and the end face is not easily damaged, with high mechanical life; The emitted light spot is large, insensitive to dust, and has strong environmental resistance

Main technical indicators

◼   Insertion loss: ≤ 0.8dB 1310&1550nm (interchangeability ≤ 1.0dB)

◼   Return loss: ≥ 40dB

◼   Tensile strength: ≥ 1000N (main cable)

◼   Mechanical lifespan: 1000 cycles

◼   Working temperature: -40 ℃~+80 ℃

◼   Vibration: 10Hz~55Hz, 0.75mm, 55Hz~5005Hz 98m/s2

◼   Impact: acceleration of 490 m/s2, dimension time of 11ms, half sine wave, in both X and Z directions, 3 times in each direction

◼   Protection level: IP67

Product application

⚫   Military fiber optic communication

⚫   Military computer system

⚫   Nuclear power field

⚫   Vehicle communication

⚫   Other emergency communications
