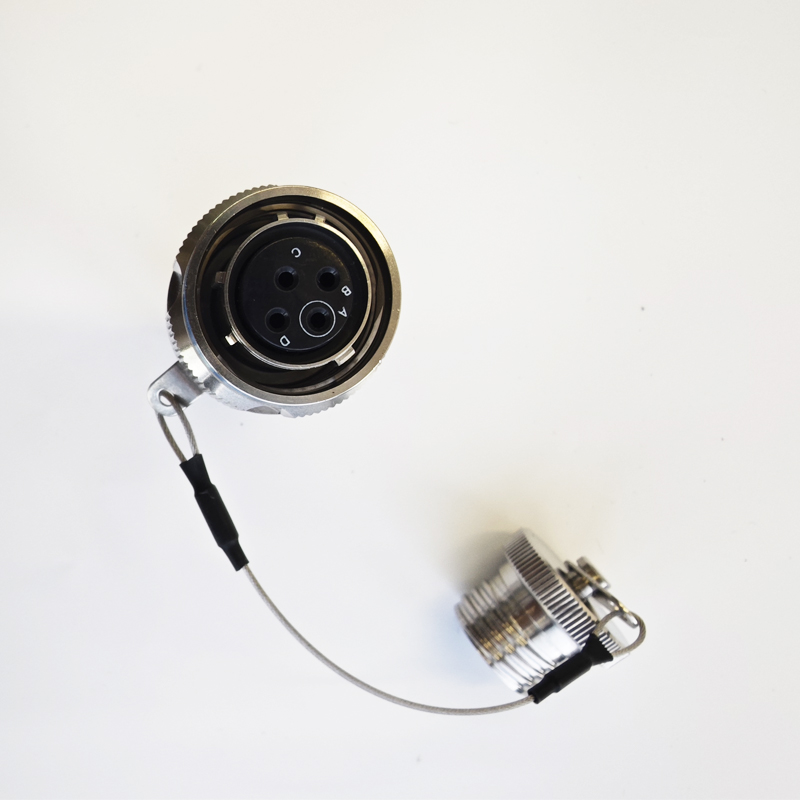

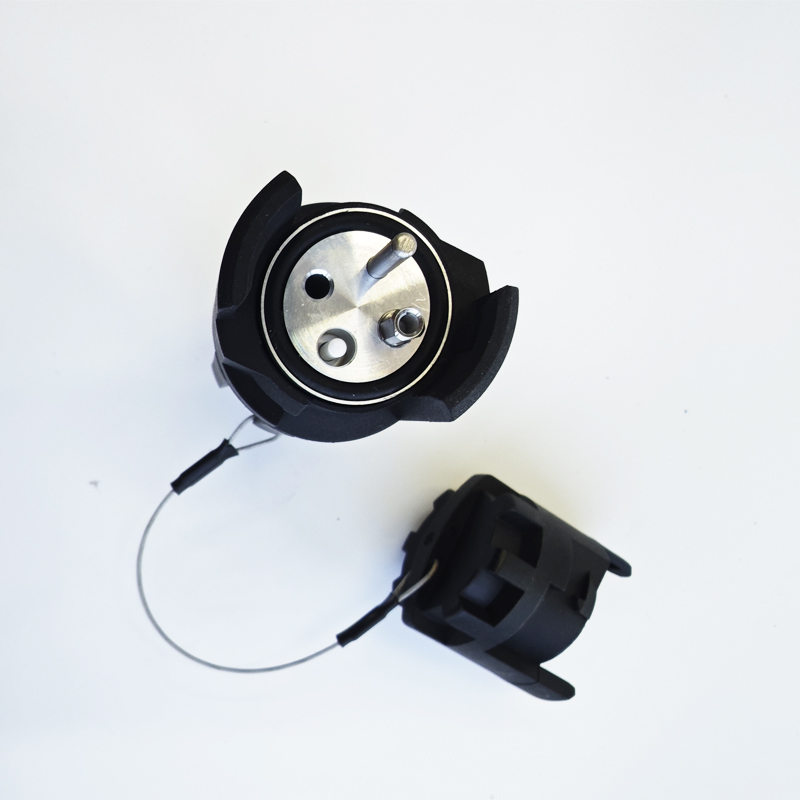

The YZ series circular neutral fiber optic connector is a multicore, neutral, bayonet locking circular fiber optic connector that complies with the GJB1919 standard, including two types: movable connectors and vehicle wall connectors. The shell is made of highquality aluminum alloy material or polymer composite material, which has excellent properties such as vibration resistance, pressure resistance, waterproofing, salt spray prevention, dust prevention, etc.
Product Features
◼ Compliant with GJB 1919
◼ Adopting a neutral bayonet lock, it can achieve quick connection and separation
◼ Wall through sealed connection structure, capable of connecting 2, 4, 6, and 8 optical fibers at once
◼ Neutral structure design, can be interconnected freely without distinguishing between male and female, plug and socket
◼ The outer shell can be made of either aluminum alloy material or polymer composite material
◼ Using ceramic inserts and ceramic sleeves to achieve precise fiber optic docking
Main technical indicators
◼ Insertion loss: ≤ 0.8dB (2-4 cores) ≤ 1.0dB (6-8 cores)
◼ Tensile strength: ≤ 500N (main cable)
◼ Mechanical lifespan: 500 cycles
◼ Temperature shock: -40 ℃~+80 ℃
◼ Protection level: IP67
